NEW Universal flat wagons type 424Z for transporting containers.

Flat wagons are available for sale as well as for lease.

Available quantity: 150 wagons

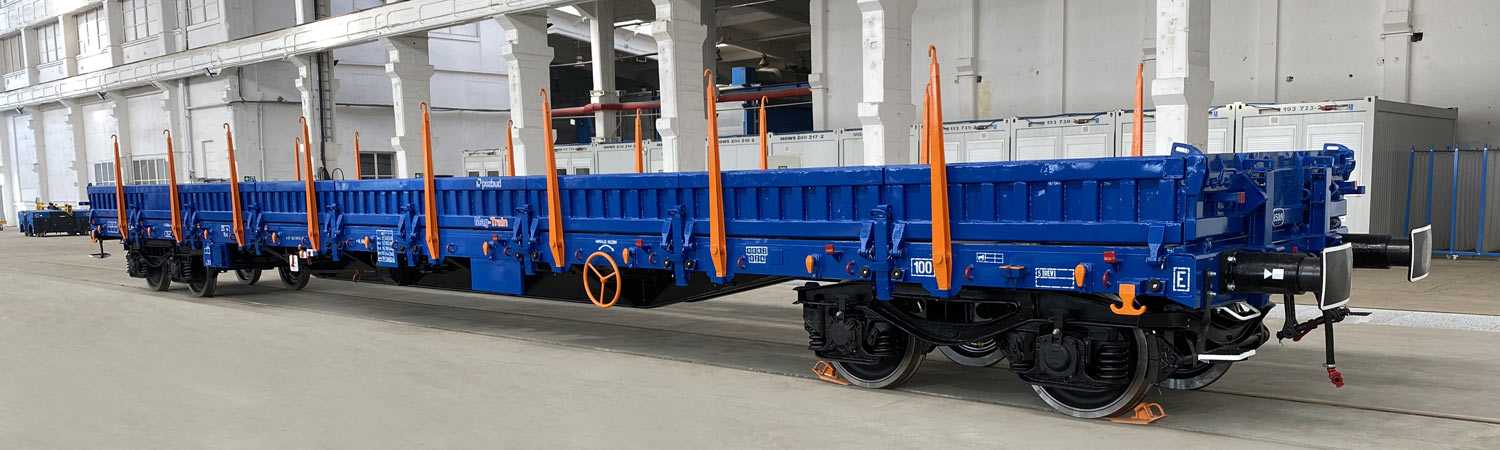

Flat wagon for transporting containers, long materials such as pipes, logs, rail tracks. Flat wagon type 424Z.

The advantage of the flat wagon is the multitude of its intended uses, including transport of containers, in the case of which any configurations can be set for containers:

  • 40”+20”
  • 60”
  • 2 x 30”

Technical data of flat wagon:

  • Total length 19,900 mm,
  • Own weight 23,500 kg,
  • Cargo capacity 56,000 kg or 66,000 kg
  • Foldable stanchions,
  • Opening side walls,
  • Possibility to transport containers.

Bogie type: 25TNa:

  • Bogie weight: ~4450 kg,
  • Brake system: pneumatic – brake cylinder 16 ‘’,
  • Mechanical brake: railway air brake by Oerlikon, with composite blocks,
  • Parking brake: pneumatic,
  • Spring suspension: 8 sets of coil springs with 2 softness degrees,
  • Dampers: Friction mushroom dampers,
  • Wheelset type: ф 920 monobloc,
  • Maximum axle load 20 t or 22.5 t.

Documentation and acceptance:

The wagon hold authorisations in accordance with their requirements for the EU market.

On wagon acceptance, complete documentation will be delivered: DSU (documentation of system of maintenance); DTR (maintenance and operation manual); WTWiO (specification of construction and testing requirements) and the approval certificate for individual order items.

The colour scheme and descriptions of wagons will be negotiated within 10 days of the date of issue of this order.

Price and terms & conditions of sale or lease: subject to negotiation

Lead time: 90 days

Warranty: 36 months
